| Brand | : | MAHINDRA |
| Model | : | HARVESTMASTER H12 4WD |
| Type | : | HARVEST |
| Category | : | CROP HARVESTER |
| Power | : |
Tractor Mounted Combine Harvester

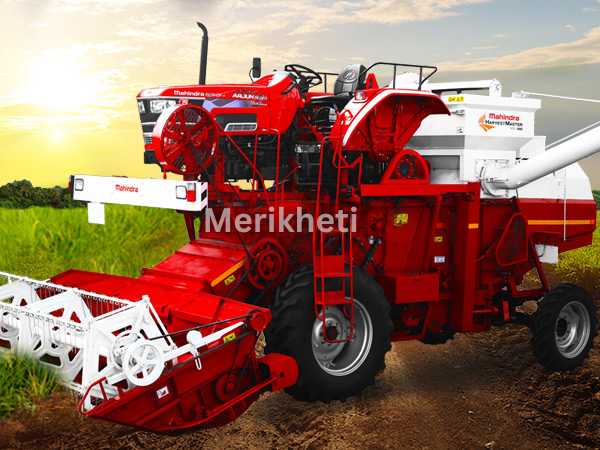

Mahindra HarvestMaster H12 4WD is a multi-crop tractor mounted combine harvester, also called tractor harvester or TMCH and has been designed and developed by Mahindra as a perfect match for the Mahindra Arjun Novo series of tractors. This tractor mounted combine harvester or tractor harvester delivers superior performance in both semi-wet and wet soil conditions.
This tractor harvester can be used for harvesting paddy, wheat, soybean and several pulses.
Tractor Mounted Combine Harvester Full Specifications
Tractor Mounted Combine Harvester Implements
| Working Width(Mm/Inch) | : |
| Power Source | : |
| Grain Tank Capacity (Kg) | : |
| Crops | : |
| Weight(Kg/Lbs) | : |
| No. of Cylinders | : |
| Compatible Tractor Model | : | Arjun Novo 605 DI-I / 655 DI |
| Compatible Tractor Power | : | 57 and 65 |
| Compatible Tractor Drive Type | : | 4WD |
| Cutting Height (Mm) | : | 30-1000 |
| Cutter Bar Auger | : | Diameter-575 (mm) X Width-3560 (mm) |
| No. of Knife Blades | : | 49 |
| No. of Knife Guards | : | 24 |
| Knife Stroke (Mm) | : | 80 |
| Range Of Speed At Engine R/Min | : | Minimum(r/min) -30 Maximum (r/min)- 37 |
| Reel Diameter (Mm) | : | 885 |
| Feeder Table Type | : | Comb & Chain |
| Thresher Drum Width (Mm) | : | 1120 |
| Diameter Of Thresher Drum (Mm) | : | 592 |
| Range Of Speed At Engine R/Min | : | Minimum (r/min)-600 Maximum( r/min)- 800 |
| Range Of Adjusting Clearance | : | Front (mm)- 12 to 30 Rear (mm)- 16 to 40 |
| Upper Sieve Area (M2) | : | 1.204/0.705 |
| Lower Sieve Area (M2) | : | 1.156 |
| No. of Straw Walkers | : | 5 |
| Grain Tank Capacity (Kg) | : | Paddy: 750 kg |
| Tyre (Front) | : | 16.9 -28, 12 PR |
| Tyre (Rear) | : | 9.5-24, 8 PR |
| Length With Trailer/Without Trailer (Mm) | : | 11315/6630 |
| Minimum Turning Diameter With Brakes (mm) | : | 12.1 (LH) /12.44 (RH) |
| Minimum Turning Diameter Without Brakes(mm) | : | 16.7 (LH) /16.9 (RH) |
