John Deere 3036E

Brand : JOHN DEERE
Cylinder : 3
HP Category : 36HP
Gear : 8 Forward + 8 Reverse
Brakes : Oil Immersed Disc Brakes
Warranty : 5000 Hours or 5 Year

John Deere 3036E

A brief explanation about John Deere 3036E in India

John Deere 3036 E is a super lightweight tractor in the 35 HP category. This model is a puddling special tractor that is equipped with the latest technology as well as has a powerful engine that is capable of offering high power in tough terrains. It is mostly used in rice/paddy fields. Also, this tractor is capable of a maximum HP of 36 HP at a rated RPM of 2800.

This drivetrain is paired with a unique Synchromesh-based transmission via a single friction type plate. This whole transmission has a 16-speed gearbox setup having 8 forward plus 8 reverse gears. This entire gearbox functions to reach the highest speed of 22.7 Kmph and 23.7 Kmph in the forward and reverse gears. To improve and increase control, this tractor is fitted with the latest oil-immersed brakes to control and power steering. This together improves control and also lowers the maintenance charge. John Deere 3036 E has an excellent loading lifting power of 910 kg.

Special feature:

  • John Deere 3036 E is fitted with a three-cylinder engine (diesel) unit having a delivering capacity output of 36 Horsepower. With a six-spline PTO type that helps to offer a PTO HP of 30 HP, this power take-off has an RPM of 540.
  • It has a great wheel arrangement of 8 x 16 inches and 12.4 x 24.4 inches in the front and rear tyres respectively. This setup of wheels helps in performing rough operations in any type of terrain.
  • To deliver the highest power via its transmission that is a mix and match of synchromesh. This entire transmission is connected via a single disc-type friction plate.
  • This tractor has a 1574 mm wheelbase that provides more stability both on and off-road. The total weight of the tractor is 1295 KG and has a length of 2919 mm.

Why consider buying a John Deere 3036 E in India?

John Deere is a recognized international brand for tractors and farm equipment. John Deere has various outstanding models, but the John Deere 3036 E is among the top offerings by John Deere. This tractor reflects the high quality, reliability and power that users expect. John Deere is committed to providing reliable, durable and efficient engines and tractors built to help customers grow their businesses.


John Deere 3036E Full Specifications

John Deere 3036E Engine

No. Of Cylinder : 3
HP Category : 36 HP
Engine Rated RPM : 2800 RPM
Air Filter : Dry type, Dual element
PTO HP : 30.6 HP
Cooling System : Coolant Cooled with Overflow reservoir

John Deere 3036E Transmission(GearBox)

Clutch Type : Single dry type
Transmission Type : Collarshift
Gear Box : 8 Forward + 8 Reverse
Battery : 12 V 52 Ah
Alternator : 12 v 43 Amp
Forward Speed : 1.90- 22.70km/h kmph
Reverse Speed : 1.70- 23.70 kmph

John Deere 3036E Brakes

Brake Type : Oil Immersed Brakes

John Deere 3036E Steering

Steering Type : Power Steering

John Deere 3036E Power Take Off

PTO Type : Independent, 6 Splines
PTO rpm : 540 @2500 ERPM, 540@1925 ERPm

John Deere 3036E Fuel Capacity

Fuel Tank Capacity : 39 litre

John Deere 3036E Dimension and Weight

Weight : 1295 KG
Wheelbase : 1574 MM
Overall Length : 2919 MM
Tractor Width : 1455 MM
Ground Clearance : 388 MM

John Deere 3036E Lifting Capacity(Hydraulics)

Lifting Capacity in Kg : 910 Kgf

John Deere 3036E Tyre Size

Front : 8.0 x 16 (4PR)
Rear : 12.4 x 24.4 (4PR)

John Deere 3036E Additional Features

Accessories : Ballast Weight , Trailer Brake Kit
Status : Launched

Similar Tractors

MAHINDRA JIVO 365 DI 4WD
MAHINDRA JIVO 365 DI 4WD
Power : 36 Hp
Drive : 4WD
Brand : MAHINDRA
John Deere 3036 EN
John Deere 3036 EN
Power : 36 Hp
Drive : 4WD
Brand : JOHN DEERE
Ad
John Deere 3028 EN
John Deere 3028 EN
Power : 28 Hp
Drive : 4WD
Brand : JOHN DEERE
John Deere 5036 D
John Deere 5036 D
Power : 36 Hp
Drive : 2WD
Brand : JOHN DEERE
John Deere 5045 D 4WD
John Deere 5045 D 4WD
Power : 45 Hp
Drive : 4WD
Brand : JOHN DEERE
Sonalika Tiger 26
Sonalika Tiger 26
Power : 26 Hp
Drive : 4WD
Brand : SONALIKA TRACTORS
Sonalika GT 22
Sonalika GT 22
Power : 22 Hp
Drive : 4WD
Brand : SONALIKA TRACTORS
Eicher 333 Super Plus
Eicher 333 Super Plus
Power : 36 Hp
Drive : 2WD
Brand : EICHER
Eicher 333
Eicher 333
Power : 36 Hp
Drive : 2WD
Brand : EICHER
Massey Ferguson 241 4WD
Massey Ferguson 241 4WD
Power : 42 Hp
Drive : 4WD
Brand : MASSEY FERGUSON
Massey Ferguson 246 DI DYNATRACK
Massey Ferguson 246 DI DYNATRACK
Power : 46 Hp
Drive : 4WD
Brand : MASSEY FERGUSON
Massey Ferguson 246 DI DYNATRACK 4WD
Massey Ferguson 246 DI DYNATRACK 4WD
Power : 46 Hp
Drive : 4WD
Brand : MASSEY FERGUSON
Massey Ferguson 6028 4WD
Massey Ferguson 6028 4WD
Power : 28 Hp
Drive : 4WD
Brand : MASSEY FERGUSON
Massey Ferguson 244 DI Dynatrack 4WD
Massey Ferguson 244 DI Dynatrack 4WD
Power : 44 Hp
Drive : 4WD
Brand : MASSEY FERGUSON

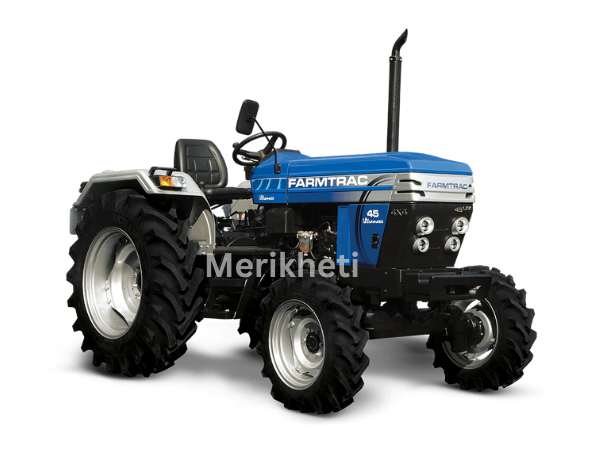

Farmtrac 45 Ultramaxx
